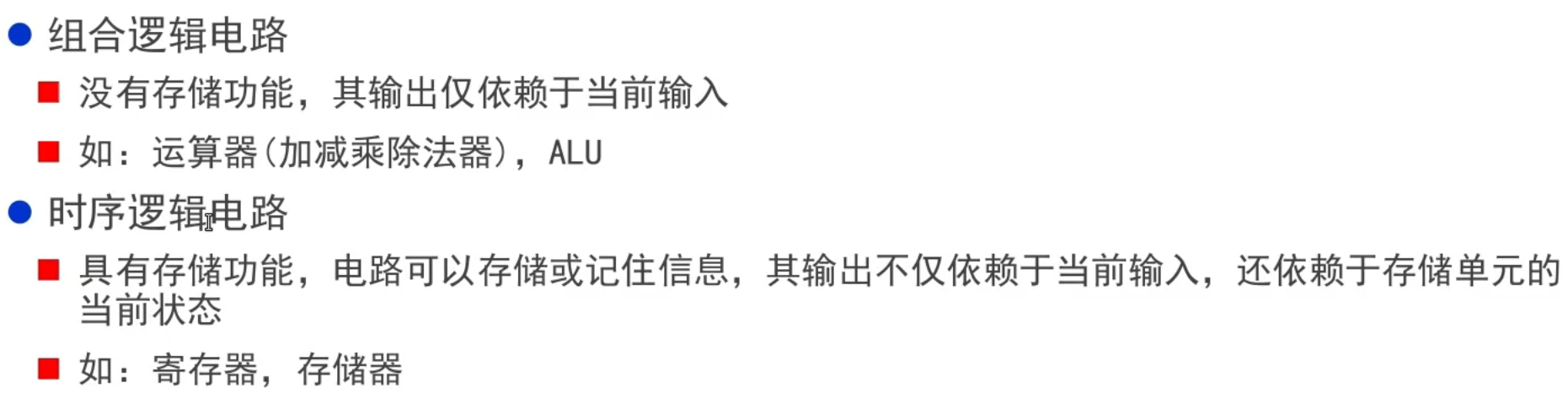

电路的分类

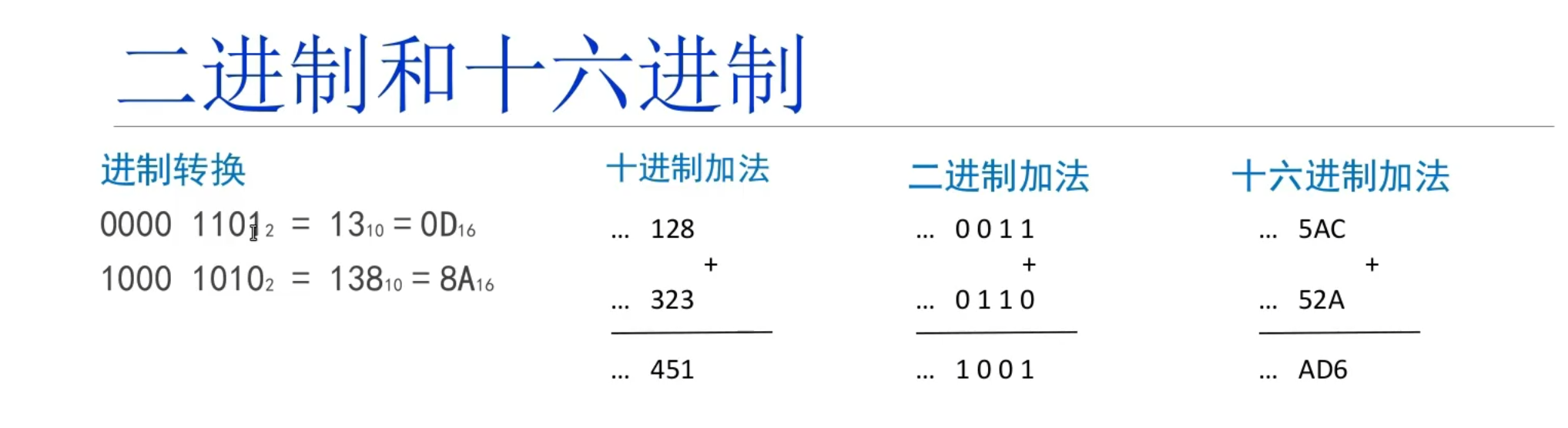

一般使用十六进制表示二进制更加方便

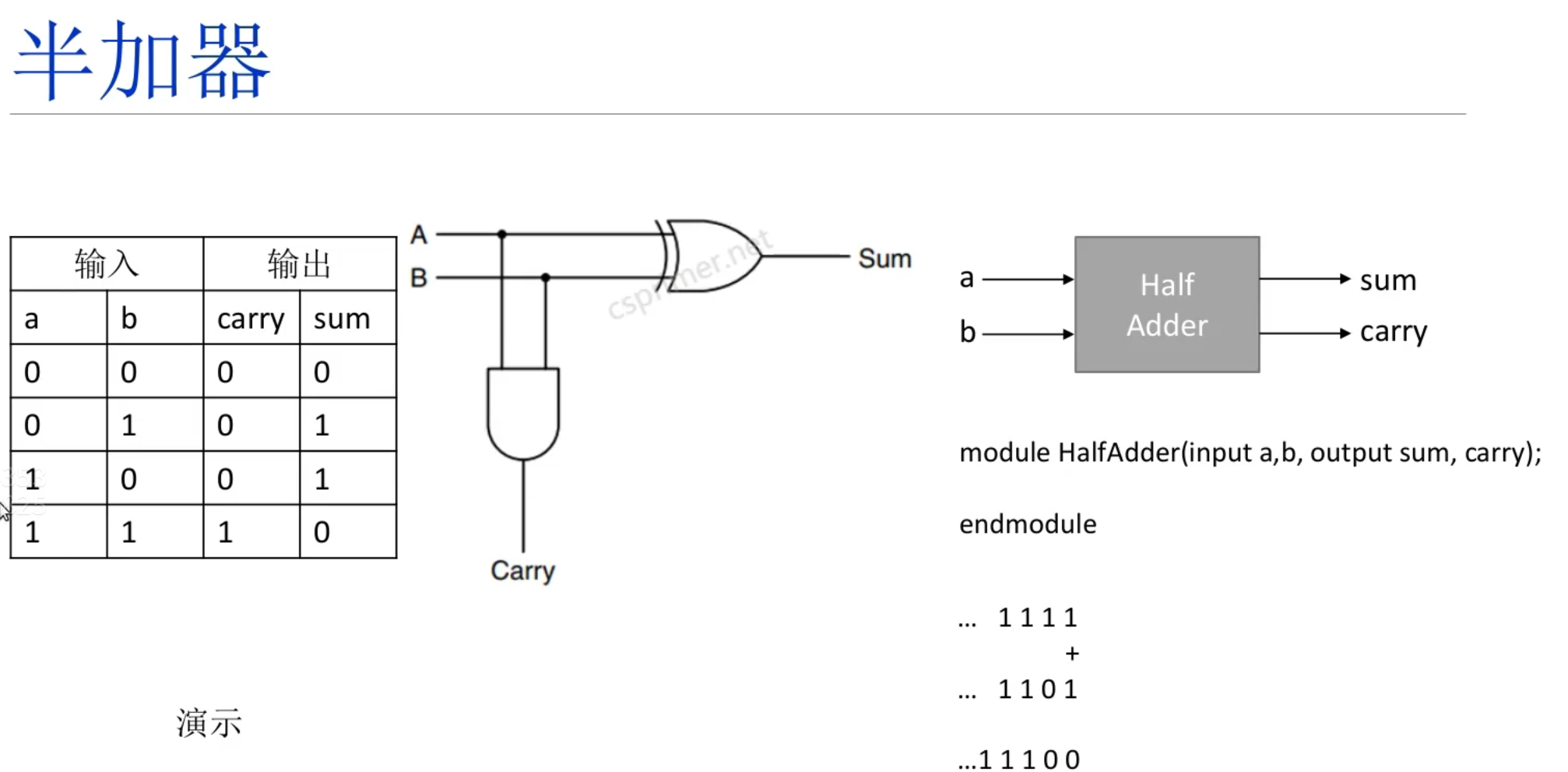

一位加法器也就是半加器电路设计
实际的二进制加法还需要考虑上一位的进位c
代码实现
`ifndef A_half_adder_V
`define A_half_adder_V
`include "a_xor.v"
`include "a_and.v"
module half_adder(output s, c, input a, b);
wire w;
a_xor x1(s, a, b);
a_and and1(c, a, b);
endmodule;
`endif
测试
`include "half_adder.v"
module half_adder_tb;
reg a, b;
wire sum, c;
half_adder obj(sum, c, a, b);
initial begin
// 将 $monitor 放在最开始，确保能监控到所有变化
$monitor("Time=%0t: a=%b, b=%b, sum=%b, carry=%b", $time, a, b, sum, c);
a = 0; b = 0; #10;
a = 0; b = 1; #10;
a = 1; b = 0; #10;
a = 1; b = 1; #10;
$finish;
end
endmodule

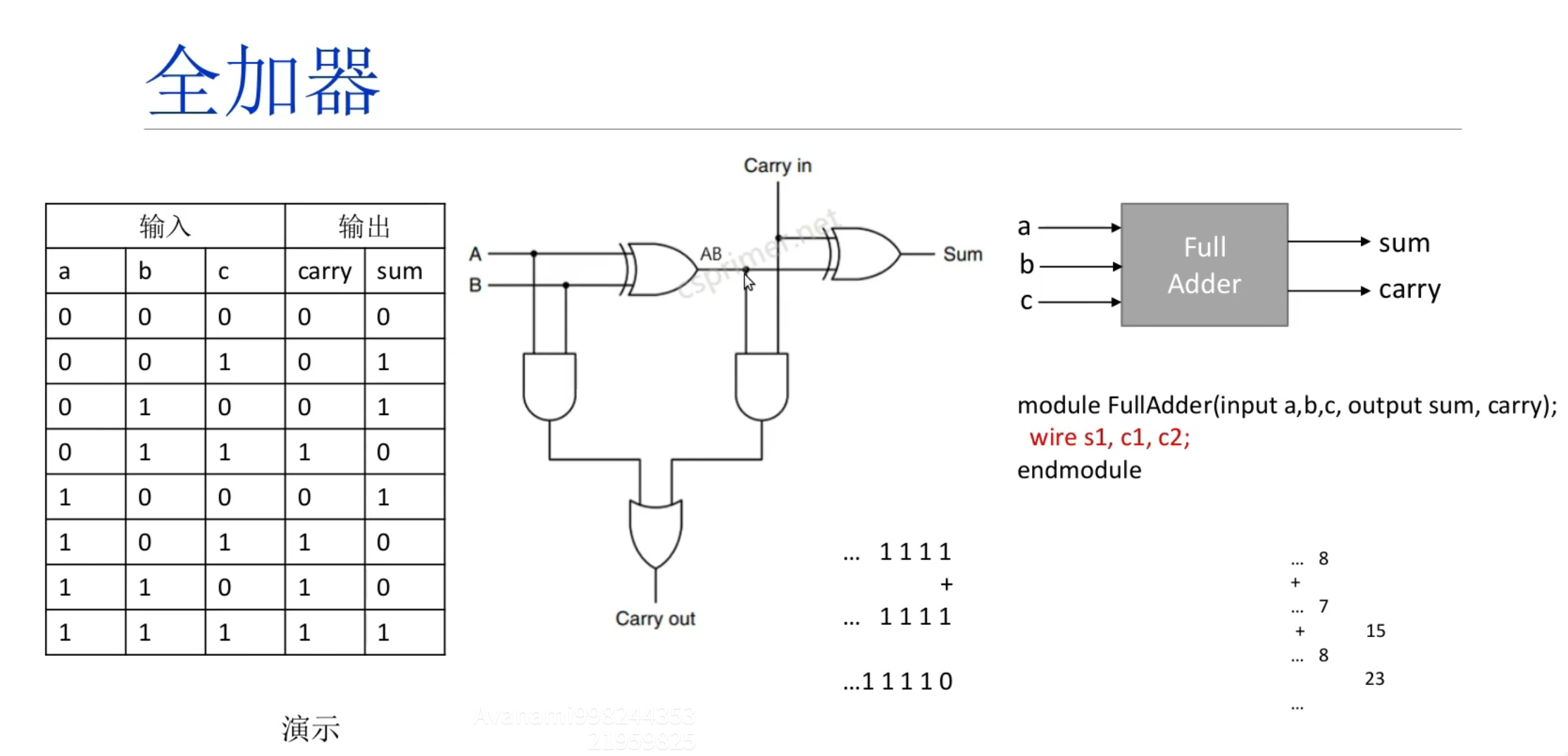

全加器电路设计
这里使用两个半加器组成一个全加器
代码实现
`ifndef full_adder_V
`define full_adder_V
`include "half_adder.v"
`include "a_or.v"
module full_adder(output sum, nc, input a, b, c);
wire val1, c1, val2, c2;
half_adder h1(val1, c1, a, b);
half_adder h2(sum, c2, val1, c);
a_or o1(nc, c1, c2);
endmodule;
`endif
测试
`include "full_adder.v"
module full_adder_V;
reg a, b, c;
wire sum, nc;
full_adder obj(sum, nc, a, b, c);
initial begin
// 将 $monitor 放在最开始，确保能监控到所有变化
$monitor("Time=%0t: a=%b, b=%b, c=%b, sum=%b, carry=%b", $time, a, b, c, sum, nc);
a = 0; b = 0; c = 1; #10;
a = 0; b = 1; c = 0; #10;
a = 0; b = 1; c = 1; #10;
a = 1; b = 0; c = 0; #10;
a = 1; b = 0; c = 1; #10;
a = 1; b = 1; c = 0; #10;
a = 1; b = 1; c = 1; #10;
a = 0; b = 0; c = 0; #10;
$finish;
end
endmodule
16位加法器设计
16个全加器串联将上一个全加器的进位当作当前全加器的一个输入
代码实现
`ifndef add16_V
`define add16_V
`include "full_adder.v"
module add16(output [15:0] sum, input [15:0] a, input [15:0] b);
supply0 gnd;
wire [15:0] tmp;
full_adder f1(sum[0], tmp[0], a[0], b[0], gnd);
full_adder f2(sum[1], tmp[1], a[1], b[1], tmp[0]);
full_adder f3(sum[2], tmp[2], a[2], b[2], tmp[1]);
full_adder f4(sum[3], tmp[3], a[3], b[3], tmp[2]);
full_adder f5(sum[4], tmp[4], a[4], b[4], tmp[3]);
full_adder f6(sum[5], tmp[5], a[5], b[5], tmp[4]);
full_adder f7(sum[6], tmp[6], a[6], b[6], tmp[5]);
full_adder f8(sum[7], tmp[7], a[7], b[7], tmp[6]);
full_adder f9(sum[8], tmp[8], a[8], b[8], tmp[7]);
full_adder f10(sum[9], tmp[9], a[9], b[9], tmp[8]);
full_adder f11(sum[10], tmp[10], a[10], b[10], tmp[9]);
full_adder f12(sum[11], tmp[11], a[11], b[11], tmp[10]);
full_adder f13(sum[12], tmp[12], a[12], b[12], tmp[11]);
full_adder f14(sum[13], tmp[13], a[13], b[13], tmp[12]);
full_adder f15(sum[14], tmp[14], a[14], b[14], tmp[13]);
full_adder f16(sum[15], tmp[15], a[15], b[15], tmp[14]);
endmodule
`endif
测试
`include "add16.v"
module add16_tb;
reg signed [15:0] a, b;
wire signed [15:0] out;
add16 obj(out, a, b);
initial begin
a=16'h0001;
b=16'h1080;
#10 b=16'h0001;
#10 a=16'ha211;
b=16'h0730;
#10 a=16'h8001;
b=16'h8003;
#10 a=1;
b=-5;
end
initial begin
$monitor("%x + %x =%x , %d + %d =%d\n", a, b, out, a, b, out);
end
endmodule
测试结果无符号表示
0001 + 1080 =1081 , 1 + 4224 = 4225
0001 + 0001 =0002 , 1 + 1 = 2
a211 + 0730 =a941 , 41489 + 1840 =43329
8001 + 8003 =0004 , 32769 + 32771 = 4
0001 + fffb =fffc , 1 + 65531 =65532
测试结果有符号表示, 如果最高位是1认为当前数字是负数
0001 + 1080 =1081 , 1 + 4224 = 4225
0001 + 0001 =0002 , 1 + 1 = 2
a211 + 0730 =a941 , -24047 + 1840 =-22207
8001 + 8003 =0004 , -32767 + -32765 = 4
0001 + fffb =fffc , 1 + -5 = -4
CPU不区分有符号无符号只有编程语言区分
减法原理
对于正数的补码就是原数本身, 负数的补码是对应的正数取反+ 1
上图是-5的补码表示, 对于16位有符号的数据来说, 减去5相当于加上32768 - 5, 具体的实现就是将正数的二进制取反+ 1, 16位无符号的数据可以拆分为15位有符号的数据数据范围[-32768, 32767]
对于CPU来说有符号数和无符号数是一样的, 只有编程语言对其进行区分
正溢负溢判断
溢出分为正溢和负溢, 前者是两个正数相加结果是负数, 后者是两个负数相加结果是正数
既然分为加减法, 那么默认每个数据都是带符号的, 例如1011就是-3
上图是正溢的情况, 最高有效位相产生了进位并且符号位相加没有进位
上图是负溢的情况, 最高有效位未产生进位并且符号位产生了进位

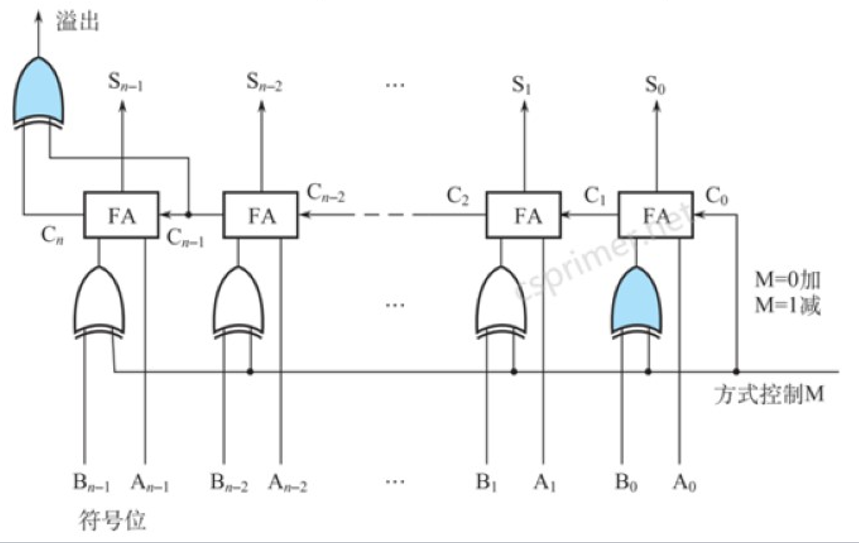

带溢出判断的加减法器的实现
代码实现
`ifndef signed_addsub_V
`define signed_addsub_V
`include "full_adder.v"
`include "a_not.v"
`include "a_xor.v"
module signed_addsub(output [15:0] sum, output overflow, input [15:0] a, b, input op);
wire [15:0] d2;
wire [15:0] b_final;
wire [15:0] carry;

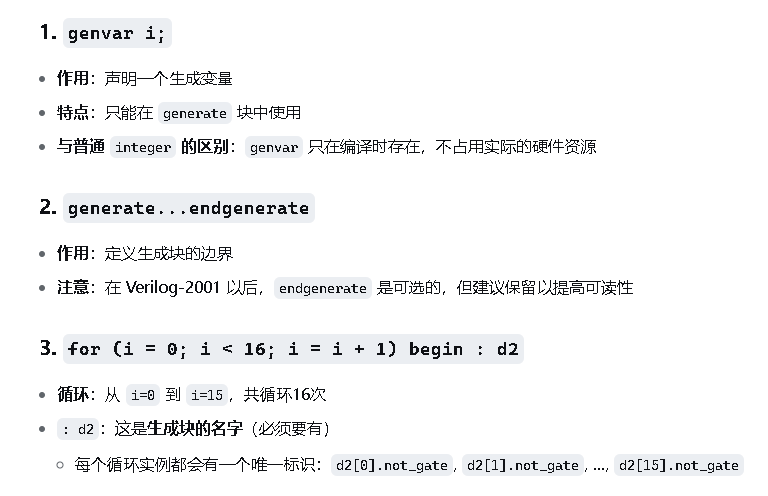

genvar i;

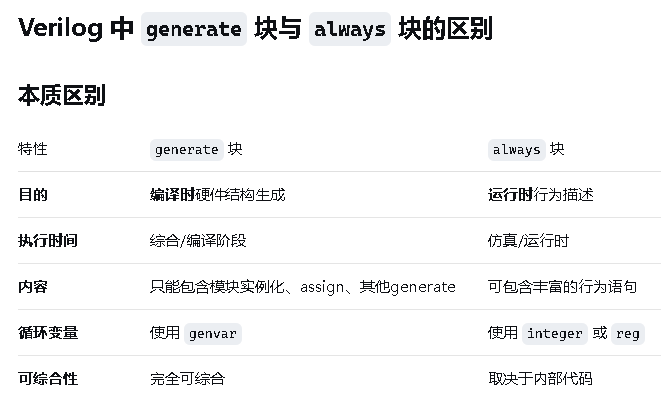

generate
for (i = 0; i < 16; i = i + 1) begin : digit_convert
a_not not_gate(d2[i], b[i]);
end
endgenerate
assign b_final = op ? d2 : b;
full_adder f1(sum[0], carry[0], a[0], b_final[0], op);
full_adder f2(sum[1], carry[1], a[1], b_final[1], carry[0]);
full_adder f3(sum[2], carry[2], a[2], b_final[2], carry[1]);
full_adder f4(sum[3], carry[3], a[3], b_final[3], carry[2]);
full_adder f5(sum[4], carry[4], a[4], b_final[4], carry[3]);
full_adder f6(sum[5], carry[5], a[5], b_final[5], carry[4]);
full_adder f7(sum[6], carry[6], a[6], b_final[6], carry[5]);
full_adder f8(sum[7], carry[7], a[7], b_final[7], carry[6]);
full_adder f9(sum[8], carry[8], a[8], b_final[8], carry[7]);
full_adder f10(sum[9], carry[9], a[9], b_final[9], carry[8]);
full_adder f11(sum[10], carry[10], a[10], b_final[10], carry[9]);
full_adder f12(sum[11], carry[11], a[11], b_final[11], carry[10]);
full_adder f13(sum[12], carry[12], a[12], b_final[12], carry[11]);
full_adder f14(sum[13], carry[13], a[13], b_final[13], carry[12]);
full_adder f15(sum[14], carry[14], a[14], b_final[14], carry[13]);
full_adder f16(sum[15], carry[15], a[15], b_final[15], carry[14]);
// 溢出逻辑判断
wire c1 = carry[14];
wire c2 = carry[15];
a_xor xor1(overflow, c1, c2);
endmodule
`endif
测试
主要测试在数据范围内的加减法, 以及计算溢出的情况
`include "signed_addsub.v"
module signed_addsub_tb;
reg [15:0] a, b;
reg op;
wire [15:0] out;
wire overflow;
signed_addsub obj(out, overflow, a, b, op);
initial begin
$dumpfile("signed_addsub_tb.vcd");
$dumpvars(0, signed_addsub_tb);
$display("=== SIGNED ADD/SUB TEST BENCH ===");
$display("Op: 0=ADD, 1=SUB");
$display("=================================");
// Test case 1: Basic positive addition
op = 0; // ADD
a = 16'h0001; // 1
b = 16'h1080; // 4224
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 2: Basic positive addition with same numbers
op = 0;
a = 16'h0001; // 1
b = 16'h0001; // 1
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 3: Negative + positive addition
op = 0;
a = 16'ha211; // -24047
b = 16'h0730; // 1840
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 4: Both negative numbers addition
op = 0;
a = 16'h8001; // -32767
b = 16'h8003; // -32765
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 5: Mixed positive and negative
op = 0;
a = 16'sd1; // 1
b = -16'sd5; // -5
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 6: Basic positive subtraction
op = 1; // SUB
a = 16'h0005; // 5
b = 16'h0002; // 2
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 7: Subtraction with negative result
op = 1;
a = 16'h0002; // 2
b = 16'h0005; // 5
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 8: Negative number subtraction
op = 1;
a = 16'hFFFB; // -5
b = 16'hFFFE; // -2
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 9: Edge case - maximum positive + positive (potential overflow)
op = 0;
a = 16'h7FFF; // 32767
b = 16'h0001; // 1
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 10: Edge case - minimum negative + negative (potential overflow)
op = 0;
a = 16'h8000; // -32768
b = 16'hFFFF; // -1
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 11: Zero addition
op = 0;
a = 16'h0000; // 0
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 12: Zero subtraction
op = 1;
a = 16'h0000; // 0
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 13: Large positive subtraction
op = 1;
a = 16'h7FFF; // 32767
b = 16'h7FFE; // 32766
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 14: Maximum positive - negative (potential overflow)
op = 1;
a = 16'h7FFF; // 32767
b = 16'h8001; // -32767
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 15: Minimum negative - positive (potential overflow)
op = 1;
a = 16'h8000; // -32768
b = 16'h0001; // 1
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 16: Identity addition (a + 0)
op = 0;
a = 16'h1234; // 4660
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 17: Identity subtraction (a - 0)
op = 1;
a = 16'h1234; // 4660
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 18: Subtraction to get zero
op = 1;
a = 16'h0005; // 5
b = 16'h0005; // 5
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 19: Complementary numbers addition (a + (-a) = 0)
op = 0;
a = 16'h00FF; // 255
b = 16'hFF01; // -255
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
// Test case 20: Boundary values test
op = 0;
a = 16'h7FFF; // 32767 (max positive)
b = 16'h8000; // -32768 (min negative)
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), Overflow=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), overflow);
$display("=================================");
$display("=== TEST COMPLETE ===");
#10 $finish;
end
endmodule

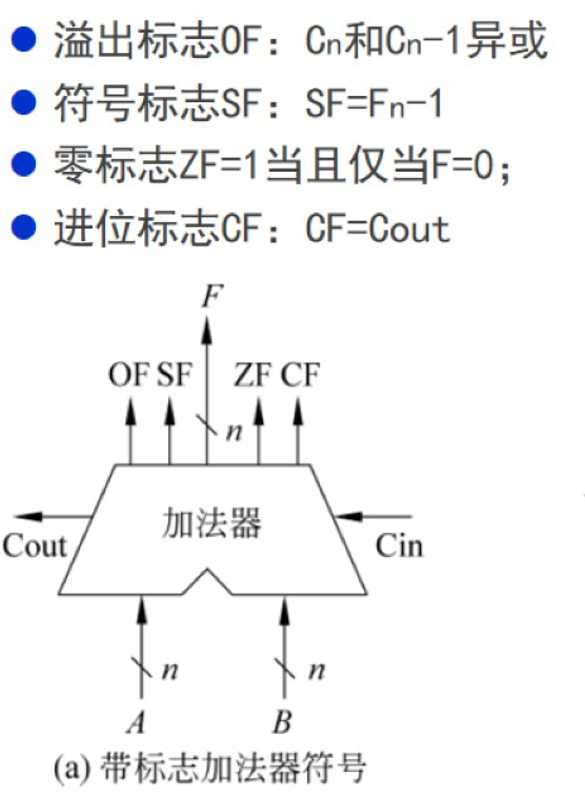

带标志位的加减法器的实现
代码实现
`ifndef signal_mark_addsub_V
`define signal_mark_addsub_V
`include "full_adder.v"
`include "a_not.v"
`include "a_xor.v"
`include "nor16.v"
module signal_mark_addsub(output [15:0] out, output of, sf, zf, cf, input [15:0] a, b, input op);
wire [15:0] d2;
wire [15:0] b_final;
wire [15:0] carry;
genvar i;
generate
for (i = 0; i < 16; i = i + 1) begin : digit_convert
a_not not_gate(d2[i], b[i]);
end
endgenerate
assign b_final = op ? d2 : b;
full_adder f1(out[0], carry[0], a[0], b_final[0], op);
full_adder f2(out[1], carry[1], a[1], b_final[1], carry[0]);
full_adder f3(out[2], carry[2], a[2], b_final[2], carry[1]);
full_adder f4(out[3], carry[3], a[3], b_final[3], carry[2]);
full_adder f5(out[4], carry[4], a[4], b_final[4], carry[3]);
full_adder f6(out[5], carry[5], a[5], b_final[5], carry[4]);
full_adder f7(out[6], carry[6], a[6], b_final[6], carry[5]);
full_adder f8(out[7], carry[7], a[7], b_final[7], carry[6]);
full_adder f9(out[8], carry[8], a[8], b_final[8], carry[7]);
full_adder f10(out[9], carry[9], a[9], b_final[9], carry[8]);
full_adder f11(out[10], carry[10], a[10], b_final[10], carry[9]);
full_adder f12(out[11], carry[11], a[11], b_final[11], carry[10]);
full_adder f13(out[12], carry[12], a[12], b_final[12], carry[11]);
full_adder f14(out[13], carry[13], a[13], b_final[13], carry[12]);
full_adder f15(out[14], carry[14], a[14], b_final[14], carry[13]);
full_adder f16(out[15], carry[15], a[15], b_final[15], carry[14]);
// 溢出逻辑判断
wire c1 = carry[14];
wire c2 = carry[15];
a_xor xor1(of, c1, c2);
// 符号标志位
assign sf = out[15];
// 0 标志位置
nor16 nor16_1(zf, 16'b0, out);
assign cf = carry[15];
endmodule
`endif
测试
`include "signal_mark_addsub.v"
module signal_mark_addsub_tb;
reg [15:0] a, b;
reg op;
wire [15:0] out;
wire of, sf, zf, cf;
signal_mark_addsub dut(out, of, sf, zf, cf, a, b, op);
initial begin
$dumpfile("signal_mark_addsub_tb.vcd");
$dumpvars(0, signal_mark_addsub_tb);
$display("=== SIGNAL MARK ADD/SUB TEST BENCH ===");
$display("Op: 0=ADD, 1=SUB");
$display("Flags: OF=Overflow, SF=Sign, ZF=Zero, CF=Carry");
$display("=======================================");
// Test case 1: Basic positive addition
op = 0; // ADD
a = 16'h0001; // 1
b = 16'h1080; // 4224
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 2: Basic positive addition with same numbers
op = 0;
a = 16'h0001; // 1
b = 16'h0001; // 1
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 3: Negative + positive addition
op = 0;
a = 16'ha211; // -24047
b = 16'h0730; // 1840
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 4: Both negative numbers addition
op = 0;
a = 16'h8001; // -32767
b = 16'h8003; // -32765
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 5: Mixed positive and negative
op = 0;
a = 16'sd1; // 1
b = -16'sd5; // -5
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 6: Basic positive subtraction
op = 1; // SUB
a = 16'h0005; // 5
b = 16'h0002; // 2
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 7: Subtraction with negative result
op = 1;
a = 16'h0002; // 2
b = 16'h0005; // 5
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 8: Negative number subtraction
op = 1;
a = 16'hFFFB; // -5
b = 16'hFFFE; // -2
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 9: Edge case - maximum positive + positive (potential overflow)
op = 0;
a = 16'h7FFF; // 32767
b = 16'h0001; // 1
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 10: Edge case - minimum negative + negative (potential overflow)
op = 0;
a = 16'h8000; // -32768
b = 16'hFFFF; // -1
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 11: Zero addition
op = 0;
a = 16'h0000; // 0
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 12: Zero subtraction
op = 1;
a = 16'h0000; // 0
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 13: Large positive subtraction
op = 1;
a = 16'h7FFF; // 32767
b = 16'h7FFE; // 32766
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 14: Maximum positive - negative (potential overflow)
op = 1;
a = 16'h7FFF; // 32767
b = 16'h8001; // -32767
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 15: Minimum negative - positive (potential overflow)
op = 1;
a = 16'h8000; // -32768
b = 16'h0001; // 1
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 16: Identity addition (a + 0)
op = 0;
a = 16'h1234; // 4660
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 17: Identity subtraction (a - 0)
op = 1;
a = 16'h1234; // 4660
b = 16'h0000; // 0
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 18: Subtraction to get zero
op = 1;
a = 16'h0005; // 5
b = 16'h0005; // 5
#10 $display("Time=%0t, Op=SUB, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 19: Complementary numbers addition (a + (-a) = 0)
op = 0;
a = 16'h00FF; // 255
b = 16'hFF01; // -255
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
// Test case 20: Boundary values test
op = 0;
a = 16'h7FFF; // 32767 (max positive)
b = 16'h8000; // -32768 (min negative)
#10 $display("Time=%0t, Op=ADD, A=%h(%d), B=%h(%d), Out=%h(%d), OF=%b, SF=%b, ZF=%b, CF=%b",
$time, a, $signed(a), b, $signed(b), out, $signed(out), of, sf, zf, cf);
$display("=================================");
$display("=== TEST COMPLETE ===");
#10 $finish;
end
endmodule
遇到的Verilog语法问题解释
verilog语言的语法, 主要作用是编译时生成重复的硬件结构
genvar 是专门用于在 generate 模块中声明循环变量的, 每个循环都需要独特的标识
代码实现
关于类似于
1'b0这种写法语法的解释如下
- 1：指定这是一个 1 位 宽度的值
- 'b：指定使用 二进制 进制
- 0：具体的值为 逻辑 0
generate块是编译阶段创建硬件或者连线, always块是硬件运行时的行为描述
京公网安备 11010502036488号
